In the machine vision industry, the saying "camera is the eye" is widely recognized, but in actual industrial inspection applications, the key to "whether you can see clearly" and "whether you can see accurately" is often hidden in another easily overlooked role-lens.
The lens is not just an accessory of the camera, it directly affects multiple key factors such as image clarity, distortion control, edge resolution and brightness consistency. In the field of precision inspection, especially in high-demand industries such as semiconductors, 3C electronics, and precision machinery, the quality and matching of the lens even determine the success or failure of the entire inspection system.
Why is the lens so critical?
In high-precision visual inspection, the camera is responsible for collecting images, but the quality of the image comes from the lens. If the lens cannot clearly project the details of the inspection target onto the sensor, no matter how high the pixel camera is, it cannot make up for the loss of image information. The following dimensions reflect the importance of the lens in the inspection system:
Is the resolution sufficient? Only high-resolution lenses can fully resolve subtle defects and avoid missed inspections.
Is the distortion controlled in place? Especially in the measurement of external dimensions, distortion will directly affect the measurement accuracy.
Is the edge of the field of view uniform? Some lenses have clear centers and blurred edges, which seriously affects the global detection results.
Is the light transmission matched? Insufficient light transmission and high image noise affect the accuracy of the AI algorithm.
Real case: Misunderstandings in lens selection in 3C assembly inspection
When a customer was doing 3C product connector pin inspection, he initially chose an 8-megapixel camera with an ordinary industrial lens, but the actual image edge was blurred, resulting in a high AI algorithm misjudgment rate. After our technical team intervened, it was adjusted to a dedicated FA lens with high resolution and low distortion, and the working distance and field of view were recalculated. The lens optimization alone increased the detection accuracy by about 35%, and the missed detection rate dropped from the original 7.6% to 1.2%.
This type of case is not an isolated case. In high-speed, high-precision measurement scenarios, precise matching and reasonable selection between cameras and lenses are the basic skills for creating a stable and reliable visual system.
Enjoy vision, professional lens selection support
Shenzhen Zhixiang Shijue Technology Co., Ltd. not only provides various types of high-resolution industrial cameras, but also has a rich industrial lens product line, covering:
High-resolution FA lens (supports 3MP/5MP/12MP/25MP)

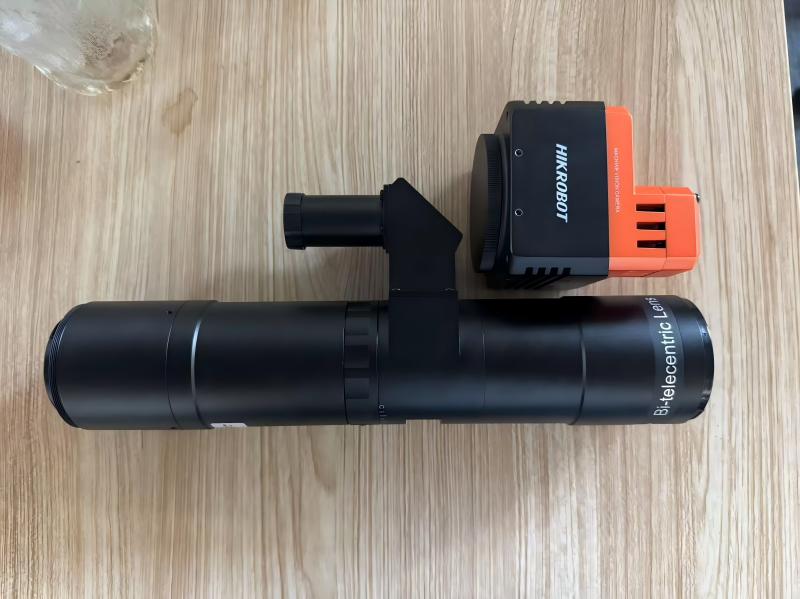

Telecentric lens series (suitable for measurement and high consistency detection scenarios)
High-throughput aperture lens (special for low-light environment)
Compact lens (small equipment or space-constrained applications)
Our technical team can provide customers with complete optical selection calculation and system matching services to ensure that when you build a visual system, you can not only "see", but also "see clearly and accurately".
Don't just focus on camera parameters. What really determines the success or failure of detection is often a good lens.
Welcome to contact us for more lens product information or get free selection suggestions to make your visual system more accurate and reliable.
