ML-FC-08K07N
ML-FC-08K07N is a high-performance linear scan industrial camera with 8192*4 resolution and three-line color RGB and near-infrared spectrum output. It is designed to meet the needs of high-speed and high-precision industrial inspection. Its superior image quality, high dynamic range and reliable industrial-grade design are suitable for high-resolution and large-viewing field inspection tasks, such as semiconductor, printing, circuit board inspection and surface inspection.
ML-FC-08K07N Product Parameters
|
Model |
ML-FC-08K07N |
|
Brand |
Teledyne DALSA |
|
Resolution |
8192×4 |
|
Line frequency (kHz) |
280(70×4) |
|
Sensor type |
CMOS |
|
Line count |
4 |
|
Pixel size |
5μm |
|

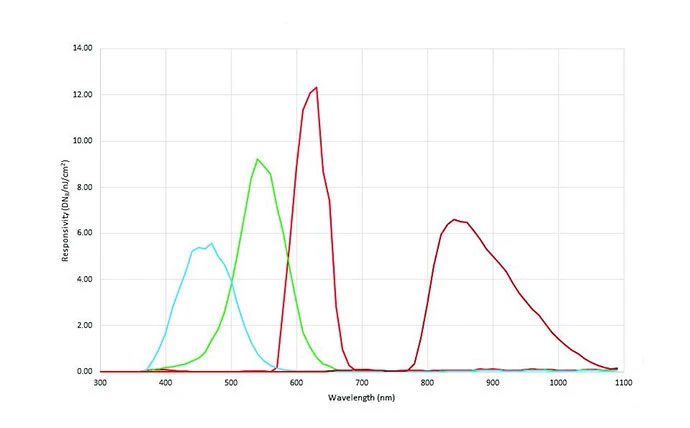

Spectrum |
color,NIR |
|
Optical interface |
M58 |
|
Dynamic range |
53 dB |
|
Data interface |
CameraLink HS,Fiber Optic |
|
Power supply requirements |
16 W(12 ~ 24 VDC) |
|
Operating temperature |
0°C ~ +65°C(Front panel) |
|
Mechanical dimensions (W×H×L) |
76 mm × 76 mm × 85 mm |
|
Weight |
500 g |
Product feature of the ML-FC-08K07N
- Ultra-high-resolution imaging
Equipped with 8192*4 pixel resolution linear sensor, it supports extremely delicate image capture to meet the needs of large field of view and high-precision industrial detection.
- High-speed scanning capability
The maximum scanning frequency is 280kHz, which can obtain clear images in real time even in high-speed production lines to ensure production efficiency and detection quality.
- High dynamic range (HDR) support
It can still provide high-quality imaging under strong or weak light conditions, suitable for complex lighting environments with high contrast.
- Industrial-grade design
The sturdy metal housing and high-reliability circuit design adapt to harsh industrial environments and support long-term stable operation.
- Standardized data interface
Equipped with M58 lens interface, it provides high-speed and low-latency data transmission capabilities, which is convenient for integration with various industrial vision systems.
Product application of the ML-FC-08K07N
- Semiconductor and Electronic Inspection
Applicable to high-precision appearance inspection of silicon wafers, chip packages, and circuit boards (PCB), which can identify tiny cracks, scratches, and other defects.
- Printing Quality Control
Monitor the color, pattern alignment, and text clarity on the printing production line to ensure high-standard output of printed products.
- High-speed Logistics and Barcode Inspection
Applicable to quickly detect the clarity and accuracy of barcodes and QR codes, and play an important role in logistics packaging and sorting systems.
- Automotive Parts Inspection
Detect surface defects, dimensional deviations, and assembly quality of parts to improve quality control capabilities during the automotive manufacturing process.
Dimension
