Product feature of the LA-CC-08K05B
- High-resolution image: Equipped with a sensor with a resolution of 8192*2, it ensures detailed image quality and is suitable for applications requiring high-precision detection.
- High-speed imaging: Supports high-speed data transmission and processing, can capture dynamic targets in real time, and reduce the impact caused by image processing delays, especially suitable for applications in high-speed production lines.
- Industrial-grade reliability: Adopts high-quality industrial-grade components, with the characteristics of shock resistance, high temperature resistance, and corrosion resistance, including a complete flat field correction function, and can work stably in intelligent triggering and multi-user groups to ensure high reliability for long-term use.
- Accurate color reproduction: The 8k photosensitive unit with dual-line color CMOS technology makes it perform well in color detection, appearance detection and other occasions.
- Flexible interface support: Provides a variety of interface options (such as GigE, CameraLink, etc.), which is convenient for compatibility with different types of equipment and systems, supports a variety of communication protocols, and is easy to integrate and expand.
- Supports a variety of lens options: Under the same interface, it can be used with a variety of lenses to meet different focal lengths, viewing angles and shooting requirements, and flexibly respond to different application scenarios.
CS Series LA-CC-08K05B Product Parameters
|
Model |
LA-CC-08K05B |
|
Brand |
Teledyne DALSA |
|
Resolution |
8192×2 |
|
Line frequency (kHz) |
48 |
|
Sensor type |
CMOS |
|
Line count |
2 |
|
Pixel size |
7.04μm |
|

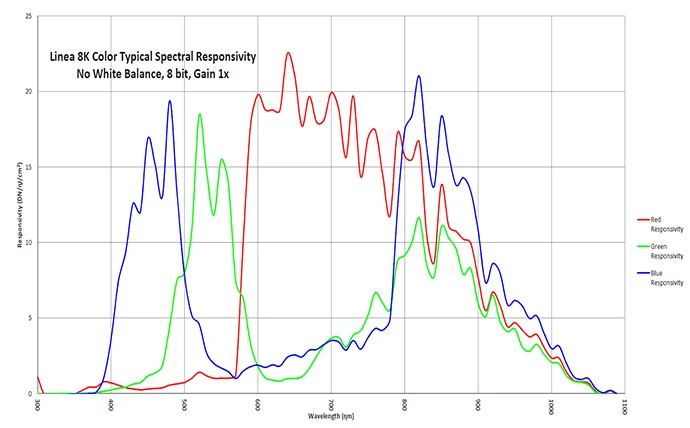

Spectrum |
color |
|
Optical interface |
M72 |
|
Dynamic range |
60 dB |
|
Data interface |
CameraLink |
|
Power supply requirements |
11 W(12 ~ 24 VDC) |
|
Operating temperature |
0°C ~ +65°C(Front panel) |
|
Mechanical dimensions (W×H×L) |
76 mm × 76 mm × 36.72 mm |
|
Weight |
310 g |
Product application of the LA-CC-08K05B
- Automated production line: used for product appearance inspection, defect detection, dimension measurement, etc. to ensure product quality stability.
- Robot guidance system: Precise image processing capabilities help robots locate, identify and grab objects, and are widely used in intelligent manufacturing and automated warehousing.
- Printing industry: High-resolution image acquisition capabilities are suitable for printing quality inspection, barcode and QR code reading, ensuring the high quality and accuracy of printed products.
- Electronic product inspection: Provides precise visual support in the automated inspection of electronic components, such as PCB board solder joint inspection, chip mounting quality inspection, etc.
- Logistics and packaging industry: Accurate identification and content inspection of packaging boxes and labels provide strong support for logistics and packaging automation.
Dimension
