Gocator 2320 Product Parameters
|
Model |
Gocator 2320 |
|
Brand |
LMI |
|
Sensor type |
point laser sensor |
|
Data points |
1280 |
|
Field of View FOV (mm) |
18~26 |
|
Measurement range MR (mm) |
25 |
|
Net distance (mm) |
40 |
|
X-direction resolution (µ m) |
14~21 |
|
Z-direction resolution (µ m) |
1.8~3.0 |
|
Z-direction linearity (% of MR) |
0.01 |
|
Z-direction repeatability accuracy (µ m) |
0.4 |
|
Laser grade |
2,3R |
|
Scanning rate/time |
0.17 ~ 5 kHz |
|
Data interface |
GigE |
|
Power supply |
24 ~ 48 VDC,13W |
|
Protection level |
IP67 |
|
Dimensions |
35 mm × 120 mm × 149.5 mm(side mounted) |
|
Working temperature |
0℃ ~ +50℃ |
|
Weight |
0.8 kg |
Product feature of the Gocator 2320
- High-precision 3D scanning, easily capture micron-level details
1280 points/contour, megapixel resolution, ensure higher measurement accuracy
5000 Hz scanning rate, suitable for high-speed production line inspection
Monochrome laser brightness image, more effective detection of defects such as cracks, scratches, dents, etc.
- Intelligent operation, ready to use
Built-in measurement tools, no programming required, simplified operation process
Direct control and settings by web browser, no additional software installation required, support remote management
Low-latency data processing, improve inspection efficiency, reduce production cycle
- Efficient data communication, easy expansion
Gigabit Ethernet data transmission, ensure high-speed and stable communication
Support multi-sensor online system, expand the inspection range, improve measurement accuracy
- Industrial-grade design, adapt to harsh environments
IP67-level industrial protective housing, waterproof and dustproof, suitable for various complex industrial environments
Compact and lightweight design, easy to integrate into various automated production systems
Product application of the Gocator 2320
- Electronic manufacturing: PCB board inspection, chip packaging inspection, welding quality analysis
- Automobile manufacturing: component size measurement, assembly error analysis, weld inspection
- Metal processing: casting surface quality inspection, part flatness measurement
- Plastics and glass: surface defect detection, thickness measurement, molding accuracy inspection
- Logistics and packaging: automatic sorting system, barcode recognition, object volume measurement

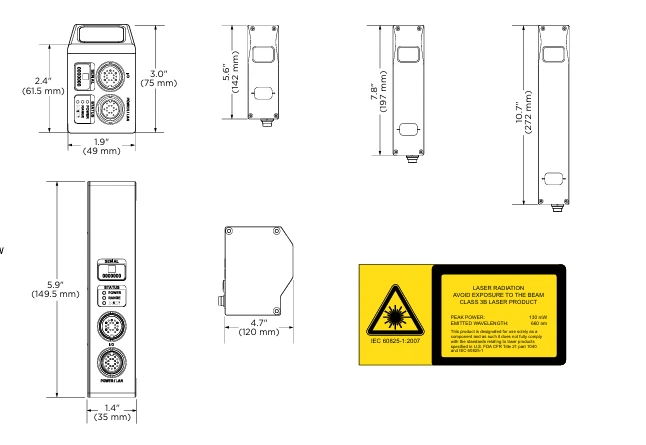

Dimensions
Installation and debugging support
Hardware installation guidance:
Guide customers to complete the installation of the camera, including mechanical fixation, line layout, interface connection, etc.
Software debugging:
- Provide installation support for camera drivers and software platforms.
- Assist in configuring parameters such as exposure, gain, frame rate, etc. to ensure the best effect of the camera in actual application.
- Interface with the customer's host computer software system to ensure smooth data acquisition and processing.
