P4-CC-02K04T
The P4-CC-02K04T is a high-performance camera designed for industrial visual inspection, with 2K resolution, high frame rate and excellent dynamic range. It combines compact design with excellent performance and can be widely used in a variety of industrial scenarios, including defect detection, precision measurement and automated production lines. Its high reliability and flexible configuration make it a reliable choice in the field of industrial automation.
P4-CC-02K04T Product Parameters
|
Model |
P4-CC-02K04T |
|
Brand |
Teledyne DALSA |
|
Resolution |
2048×3 |
|
Line frequency (kHz) |
40 |
|
Sensor type |
CMOS |
|
Number of lines |
3 |
|
Pixel size |
14.08μm |
|

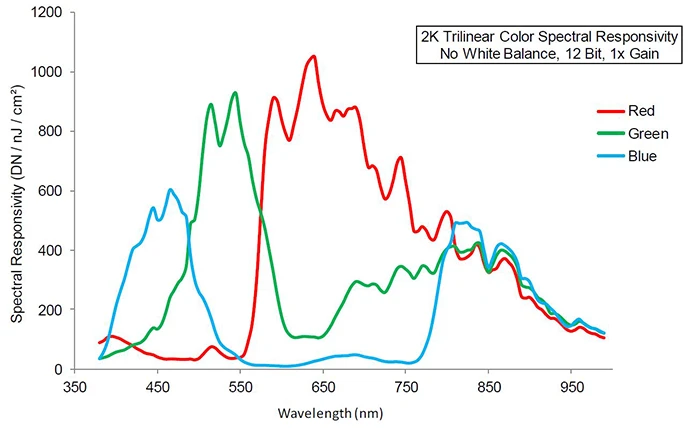

Spectrum |
color |
|
Optical interface |
M42 |
|
Data interface |
CameraLink |
|
Power supply requirements |
8 W(Standard)或 6 W(small body)(12 ~ 24 VDC) |
|
Operating temperature |
0°C ~ +65°C(Front panel) |
|
Mechanical dimensions (W×H×L) |
62 mm × 62 mm × 48 mm(Standard);62 mm × 62 mm × 37 mm(small body) |
|
Weight |
< 340 g(Standard);< 300 g(small body) |
Product feature of the P4-CC-02K04T
- 2K resolution, precise imaging
Equipped with a high-resolution 2048 × 3 CMOS image sensor, ensuring clear image details.
Supports high-quality image acquisition to ensure accurate measurement and detection.
- High-speed frame rate, adapting to dynamic scenes
With a high-speed line rate of up to 40kHz, it can quickly scan moving objects.
In high frame rate mode, it can still maintain stable image quality without distortion.
- Excellent low-light performance
Advanced sensor design can output low-noise images even in low-light environments.
Suitable for detection tasks under complex lighting conditions, such as weak reflections or strong light contrast scenes.
- Compact and lightweight design
The compact body (size 62mm × 62mm × 48mm) is easy to integrate into compact production equipment.
Industrial-grade durable design, shockproof and dustproof, ensures stable operation in harsh environments.
- Multi-interface support, strong compatibility
Supports multiple data interfaces CameraLink to meet data transmission needs.
Standardized protocols, easily compatible with mainstream industrial vision software and development platforms.
- Flexible configuration to meet diverse needs
Supports a variety of lens interfaces M42, users can choose the appropriate optical components according to the actual application.
Provides a variety of image processing options (exposure control, gain adjustment, white balance setting) to meet the needs of different detection scenarios.
Product application of the P4-CC-02K04T
- Mechanical manufacturing
Component appearance defect detection and measurement.
High-speed assembly line detection and correction.
- Electronic manufacturing
Circuit board defect detection, solder joint quality analysis.
Precision component size measurement and position calibration.
- Printing and packaging
Pattern color correction, stripe and stain detection.
Printing material quality monitoring.
- Logistics and sorting
Fast barcode reading and size measurement.
Visual support for automated sorting equipment.
Dimension
