Gocator 3504 Product Parameters
|
Model |
Gocator 3504 |
|
Brand |
LMI |
|
Sensor type |
Snapshot sensor |
|
Field of View FOV (mm) |
12.1 × 13.2 (near-field), 12.7 × 16.4 (maxY), 13 × 15 (far-field) |
|
Measurement range MR (mm) |
7 |
|
Net distance (mm) |
52.5 |
|
X-direction resolution (µ m) |
6.7~7.1 |
|
Z-direction repeatability accuracy (µ m) |
0.2 |
|
Laser grade |
2,3R,3B |
|
Scanning rate/time |
6 kHz |
|
Data interface |
GigE |
|
Power supply |
24 ~ 48 VDC,15W |
|
Protection level |
IP67 |
|
Dimensions |
49 mm × 152 mm × 177.5 mm |
|
Working temperature |
0℃ ~ +40℃ |
|
Weight |
1.77 kg |
Product feature of the Gocator 3504
1. Superior 3D Imaging & Measurement Accuracy
Equipped with a 5-megapixel resolution sensor, ensuring detailed 3D scanning of microscopic features.
Provides high-precision measurements, achieving an XY resolution of 6.7 μm and Z-direction repeatability of 0.2 μm, making it perfect for microelectronics and semiconductor inspection.
2. Advanced Blue LED Structured Light Technology
Utilizes blue LED light source, reducing interference from ambient lighting for more stable and accurate 3D measurements.
The binocular stereo camera design minimizes occlusions, ensuring more comprehensive surface scanning.
3. High-Speed Processing for Inline Automation
Equipped with a dual-core controller, significantly enhancing real-time processing speeds for fast-paced production environments.
Can achieve up to 6Hz scanning speed, ensuring quick and efficient quality control.
Supports PC-based processing or Gocator accelerator enhancement, optimizing performance for high-speed inline inspection applications.
4. User-Friendly & Versatile Operation
No programming required – built-in measurement tools simplify setup and integration.
Works seamlessly with any web browser, computer, and operating system, offering a flexible and intuitive interface.
5. Rugged Industrial-Grade Design
Compact and lightweight structure, easy to install in space-constrained production environments.
Industrial-grade IP67 casing, providing dustproof and waterproof protection for harsh manufacturing conditions.
Effectively reduces measurement errors caused by vibrations in linear motion systems, ensuring consistent high-precision results.
Product application of the Gocator 3504
- Microelectronics & Semiconductor Inspection： Ideal for small electronic components, circuit boards, and microchips.
- Battery & PCB Quality Control： Ensures accurate assembly and defect detection.
- Precision Manufacturing： Used in automotive electronics, optical components, and intricate parts inspection.
- Medical Device Inspection： Validates high-precision medical equipment components.
- Factory Automation & Robotics： Seamlessly integrates into smart manufacturing environments.

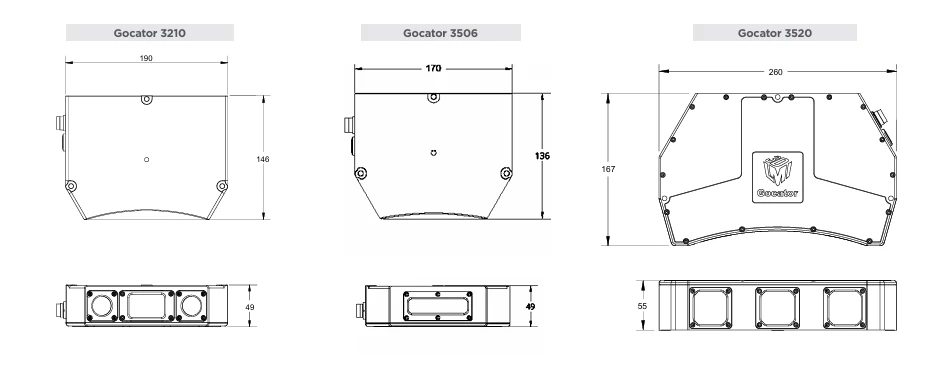

Dimensions
