Gocator 2180 Product Parameters
|
Model |
Gocator 2180 |
|
Brand |
LMI |
|
Sensor type |
point laser sensor |
|
Measurement range MR (mm) |
800 |
|
Net distance (mm) |
350 |
|
Z-direction resolution (µ m) |
750~2200 |
|
Z-direction linearity (% of MR) |
0.04 |
|
Laser grade |
2,3R |
|
Scanning rate/time |
0.17 ~ 5 kHz |
|
Data interface |
GigE |
|
Power supply |
24 ~ 48 VDC,13W |
|
Protection level |
IP67 |
|
Mechanical dimensions |
49 mm × 75 mm × 272 mm(side mounted) |
|
Working temperature |
0℃ ~ +50℃ |
|
Weight |
1.3 kg |
Product feature of the Gocator 2180
- High-resolution 3D scanning, precise measurement
640 points/contour, VGA-level resolution, upgradeable to higher accuracy
Scanning rate up to 5000 Hz, meeting the needs of high-speed dynamic detection
Monochrome laser brightness image, which can more effectively detect product defects such as scratches, dents, etc.
- Intelligent design, easy to integrate
Built-in measurement tools, ready to use out of the box, no programming required
Direct setup and control via web browser, no need to install additional software, simple and fast deployment
Support Gigabit Ethernet (GigE) data transmission to ensure high-speed data processing and communication
- Modular expansion, flexible application
Can be expanded to a multi-sensor system to achieve a larger scanning field of view or higher measurement accuracy
Compatible with other Gocator sensors for easy upgrade and system integration
- Industrial-grade durability, adapt to harsh environments
IP67-level industrial protective housing, waterproof and dustproof, suitable for complex industrial environments
Small and light body, can be fixed in a small space or on a robotic arm to meet flexible deployment needs
Product application of the Gocator 2180
- Electronic manufacturing: PCB board inspection, chip packaging inspection, electronic component welding quality analysis
- Automobile manufacturing: weld inspection, component size measurement, assembly error analysis
- Metal processing: casting surface quality inspection, component flatness measurement
- Plastics and glass: surface defect inspection, thickness measurement, molding accuracy inspection
- Logistics and packaging: object volume measurement, automatic sorting system, barcode recognition

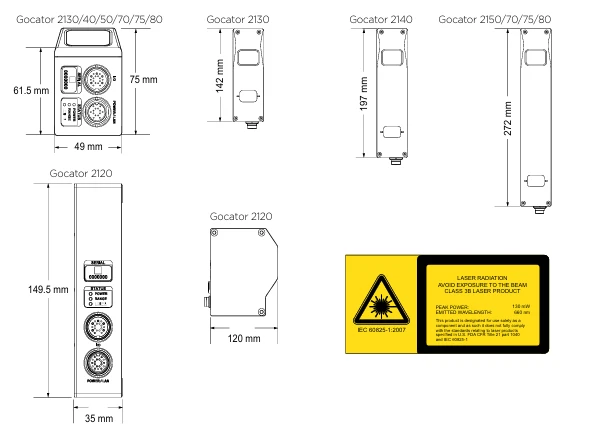

Dimensions
Installation and debugging support
Hardware installation guidance:
Guide customers to complete the installation of the camera, including mechanical fixation, line layout, interface connection, etc.
Software debugging:
- Provide installation support for camera drivers and software platforms.
- Assist in configuring parameters such as exposure, gain, frame rate, etc. to ensure the best effect of the camera in actual application.
- Interface with the customer's host computer software system to ensure smooth data acquisition and processing.
